Overview

Meet the ZMT5-HH, the ultimate handheld transmitter for sound professionals. Built for pros that need it all, it features interchangeable mic capsules, crystal-clear encrypted audio, internal recording, remote control, time code, and best yet, the ability to run wirelessly or wired at the same time.

Crafted from sleek, machined metal, it’s lightweight, cool to the touch, and built to perform. The ergonomic design protects the XLR, locks out accidental button presses, and hides a powerful antenna inside. With a quick-swap battery that lasts up to 10 hours, ZMT5-HH is ready for any performance, anywhere.

Connectivity

ZMT5-HH is a revolutionary handheld microphone that can operate as both a wireless transmitter and a hardwired microphone simultaneously.

Hardwired balanced mic level analog audio offers an alternative to wireless transmission or can be used simultaneously as a backup or sent to another device.

Pefect for everything from professional broadcast shows and live performances to seminars, weddings, internet talk shows, video blogs, gaming videos, concerts, houses of worship, and more.

Interchangeable Capsules

ZMT5-HH is compatible with any Shure 1.25″ opening and 28 thread pitch compatible mic capsule.

*Microphone capsules are sold separately.
*Shure has no association with Zaxcom.

ZMT5-HH, XLR cover removed

Encrypted Audio

ZMT5-HH transmits wireless audio using 100% digital modulation, resulting in fully encrypted audio. Digital encryption is the only way to ensure the privacy of all audio transmissions. A digital transmission also provides audio quality far superior to an analog system.

Internal Recording

Audio can be recorded internally to a microSD card using the highly reliable lossless MARF (Mobile Audio Recording Format), which eliminates file corruption common to recordings due to dead battery or early card removal.

ZMT5-HH

Advanced Features

Equipped with ZaxNet, audio is automatically recorded with a time code reference. Frequency, output power, and record mode can be remotely controlled.

Its fully digital wireless audio transmission features NeverClip, which extends the dynamic range of the microphone to 128dB, eliminating the need for a compressor that distorts the natural sound quality at high-volume audio levels.

Frequency Range

ZMT5-HH is available in the following frequency band: 470 to 698 MHz.

Power

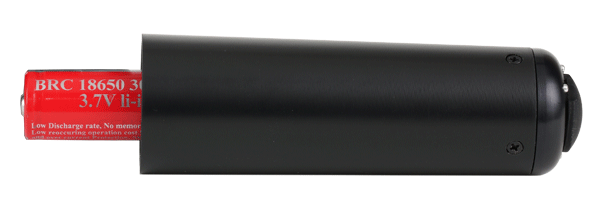

ZMT5-HH is powered by a single 18650 Li-ion battery that can last up to 10 hours. The display will approximate the percentage of remaining battery power for easy exchange.

ZMT5-HH

What’s the difference between ZMT5-HH and ZMT4-HH?

ZMT5-HH can operate as both a wireless transmitter and a hardwired microphone simultaneously.

Where is the antenna?

ZMT5-HH has is no external visible antenna. It’s internal it can transmit audio no matter how you hold it.

Can ZMT5-HH record internally?

Yes. Internal recording is available through microSD. We recommend using 4GB memory cards from either Transcend or SanDisk through a reputable dealer.

What battery type do you recommend?

A single 18650 Li-ion battery can provide power up to 10 hours.
