Automixer Effects MARF Neverclip™ PreRecord Timecode

The Zax-Max has 6 analog inputs, 4 with mic pre amps featuring NeverClip™ and 2 AES digital inputs that can be used with AES42 microphones.  All these inputs can be mixed into a two-channel output bus over two sets of output connectors that can be individually configured as line, mic and consumer output levels as well as a balanced mono and tape out. There are four AES direct outs + an AES stereo mix. The two-channel balanced camera returns doubles as balanced line level inputs.

Max comes standard with the ability to record eight track on a CompactFlash card. Files can be recorded at up to 24 bit / 192 KHz with a dynamic range of 137 dB.

The Max has an optional built-in RF camera link transmitter is ordered block specific, RF power output is adjustable up to 100 mW.  It has a 24MHz wide RF band pass filter to eliminate interference to receivers in the sound bag.



Zaxcom Accessories

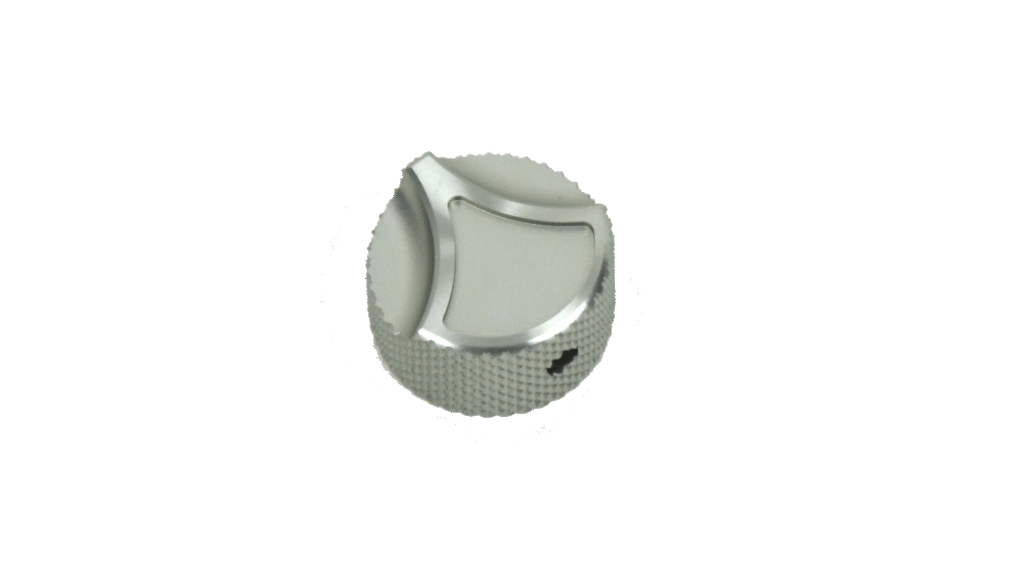

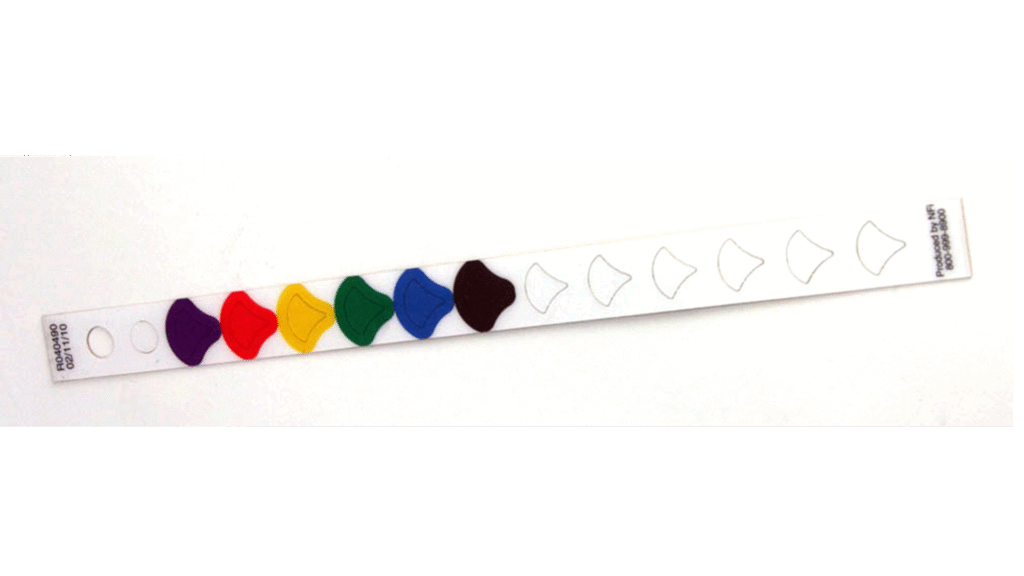

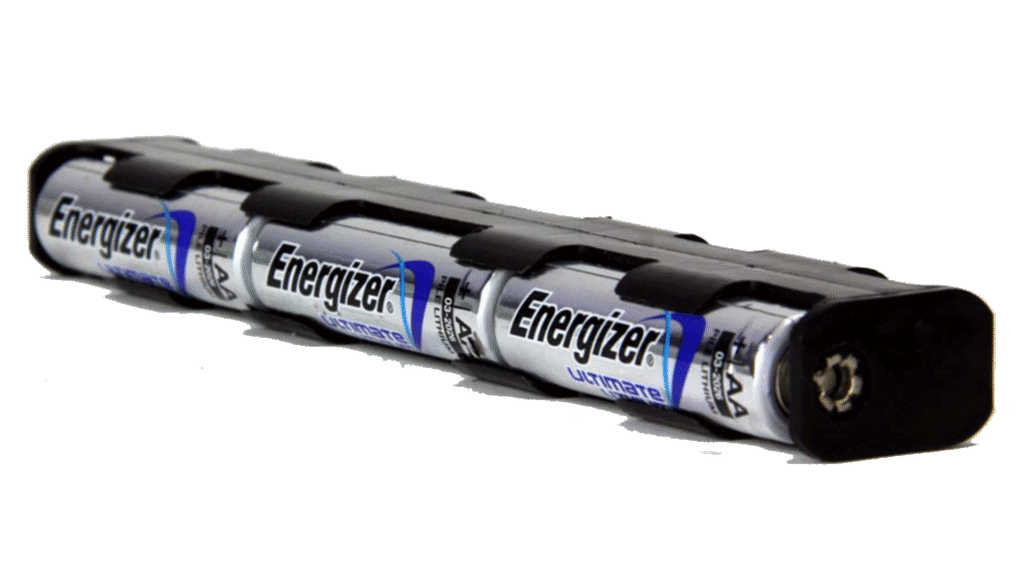

6AA battery holder sled External Power Supply for Deva / Fusion Fader Decal Strip for Nomad / MaxSMA Antenna Spare Nomad / Max fader knob
